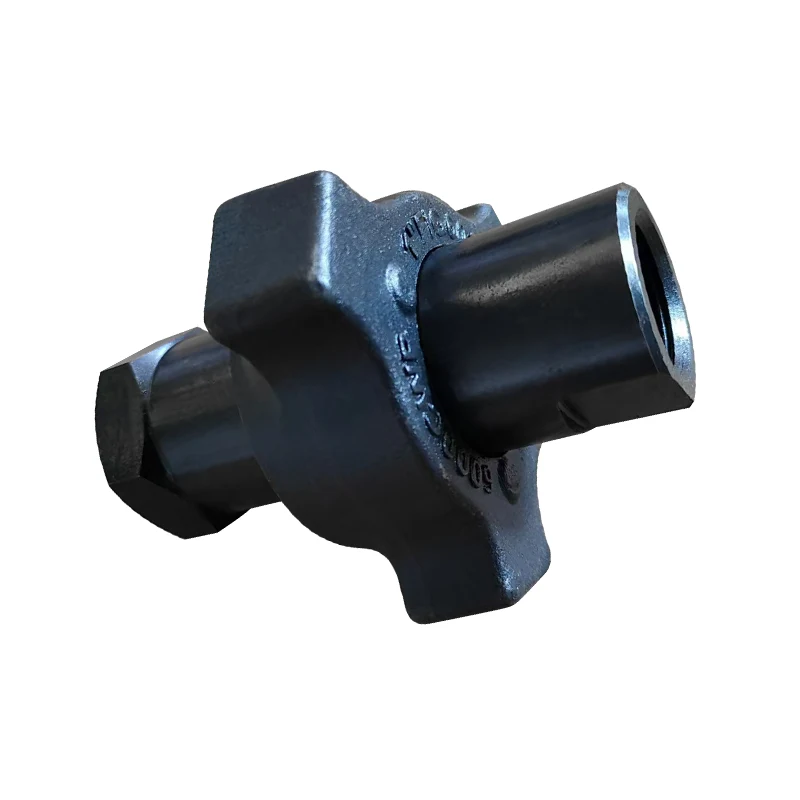

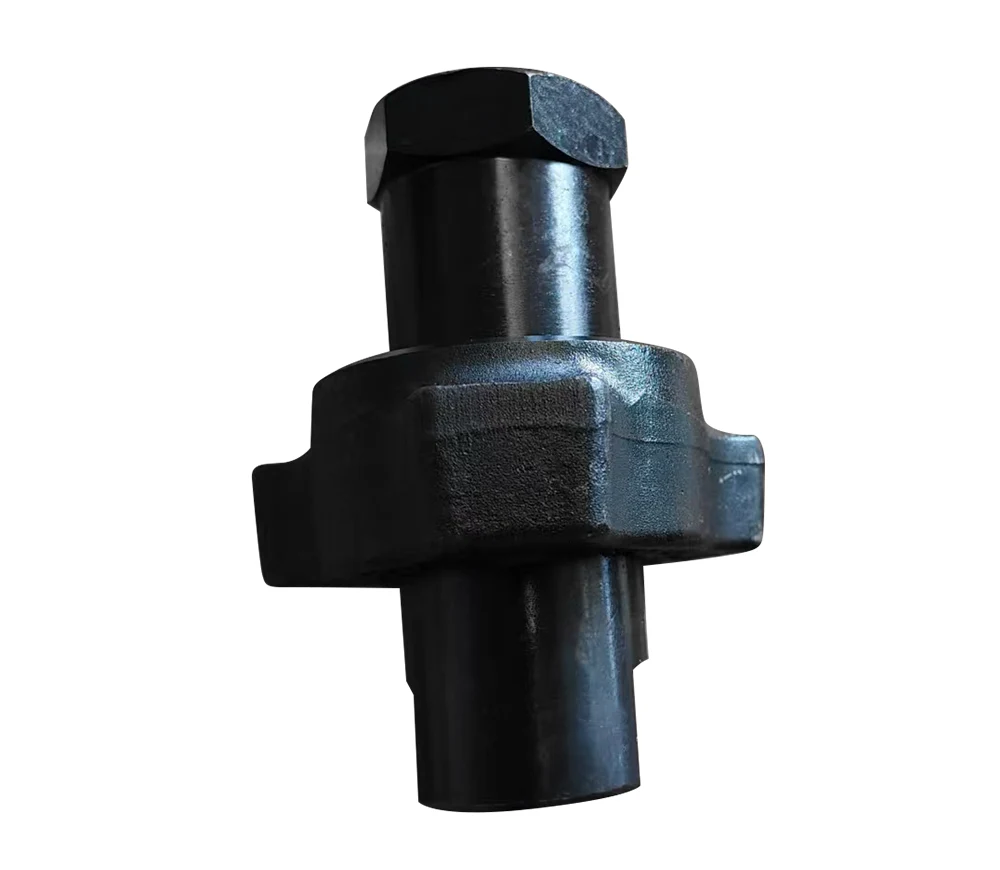

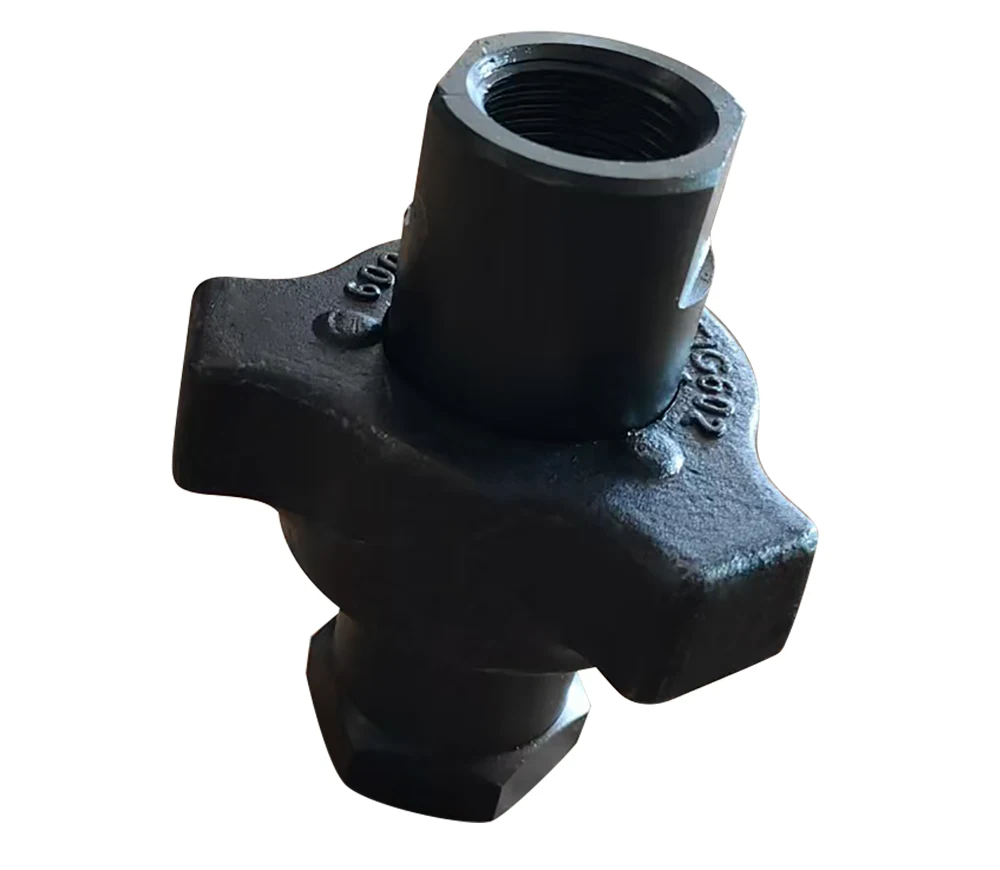

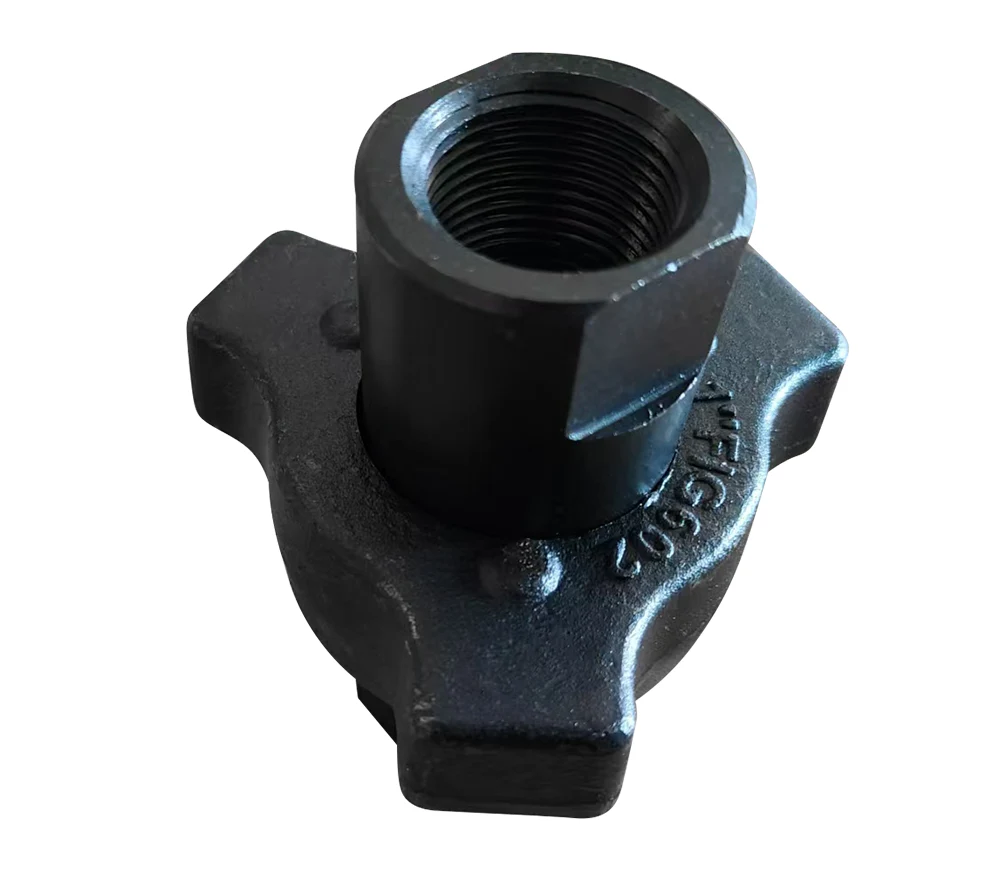

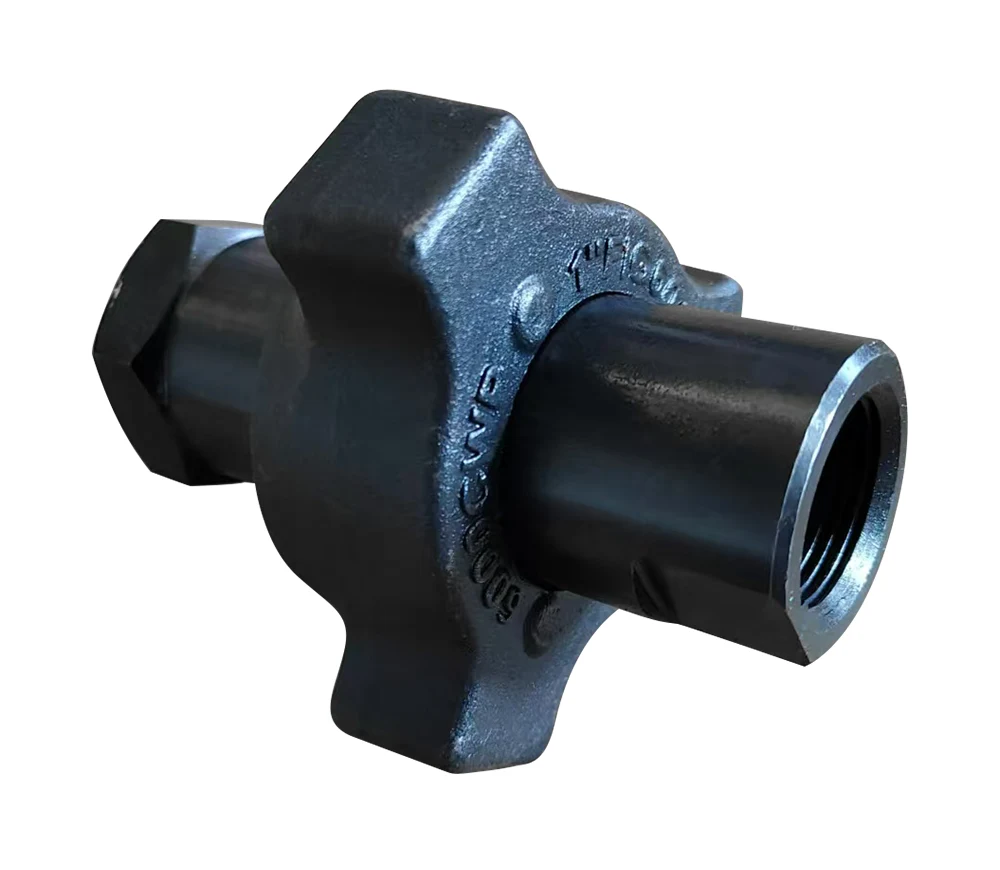

Threaded Hammer Union

API 6A certified threaded hammer unions, designed for oil, gas and high pressure industries, provide 15,000~20,000 PSI ultra-high pressure load capacity, suitable for sour gas (H2S), cryogenic and slurry media environments. Forged steel and dual seal design (metal taper + elastomer seal) support quick installation and 100% international brand interchangeability, complying with API 6A, NACE MR0175 and other standards, and color coding system for quick identification of pressure ratings. Highly reliable connections for drilling rigs, piping systems and chemical equipment.

Send Inquiry

Product Description

Our threaded hammer fittings use a modular three-component structure, consisting of a male connector, a female connector and a shaped nut, which can be quickly locked by hammering the nut without professional tools, and the original intelligent sealing system is suitable for all kinds of low-, medium- and high-pressure environments, as well as acid environments, which are widely used in oil drilling, natural gas transportation, chemical equipment, and support butt-welding, socket-welding, NPTS threads and other end connections, and can be matched with extensions (300mm/450mm) to achieve the depth of up to 2 meters. Support butt welding, plug welding, NPTS threads and other end connections, and can be used with extensions (300mm/450mm) to realize pipe extensions up to a depth of 2 meters.

Common models:

Material: the main body is made of AISI 4130/4140 forged steel, low temperature impact toughness up to -46°C, special scenarios will be used 316L stainless steel (Cl- corrosion resistance) or duplex steel (acid gas)

Technical advantages: vacuum brazing process (1,120°C) to improve carbide tip wear resistance, two-step heat treatment process to ensure a balance between hardness and ductility.

Threaded Hammer Union
